Unsafe web browsing in Mauritius

S. Moonesamy

28 April 2021

Is a web site safe to visit?

Secure communication channel

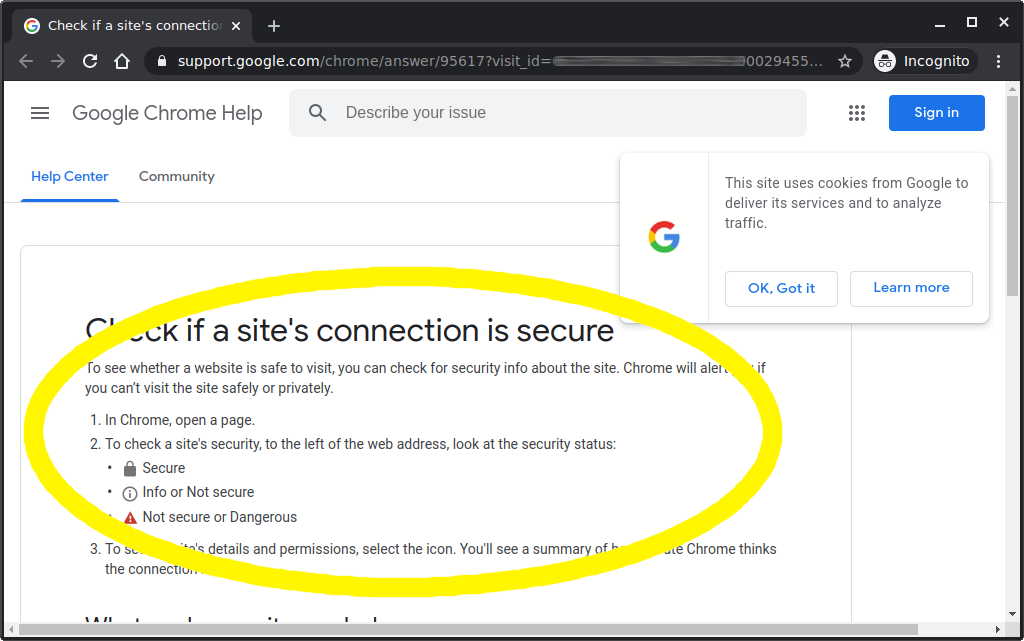

The web browser displays a padlock (or lock) to indicate a secure communication channel between the web browser and the web server on which the web site is hosted.

Web Browsing

The next video shows a user visiting some web sites. The communication between the web browser and the web sites is decrypted in real-time and displayed in the window behind the web browser.

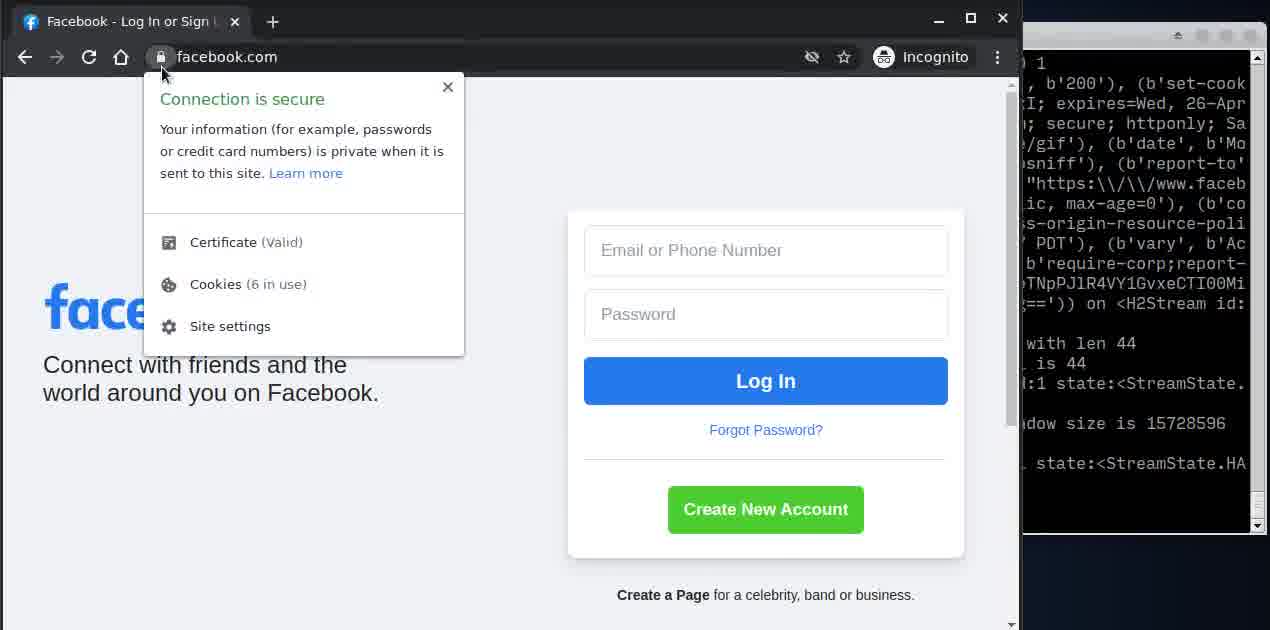

The web browser displays a padlock even though the communication is not private.

Web browsing

Recommendation for secure communication

The Transport Layer Security (TLS) Protocol is recommended for secure communication.

Recommendation in the United States

The National Security Agency (NSA) emphatically recommends replacing obsolete protocol configurations with ones that utilize strong encryption and authentication to protect all sensitive information.

Used for secure communication in France

Le protocole TLS est une des solutions les plus répandues pour la protection des flux réseau.

Transport Layer Security (TLS) Protocol

The technical specification for the protocol states that the web browser is « responsible for verifying the integrity of certificates and should generally support certificate revocation messages. Absent a specific indication from an application profile, certificates should always be verified to ensure proper signing by a trusted certificate authority (CA).»

Can the secure communication channel (TLS) be decrypted by a third-party?

Connection

Secure Communication

Is the communication channel (TLS) secure?

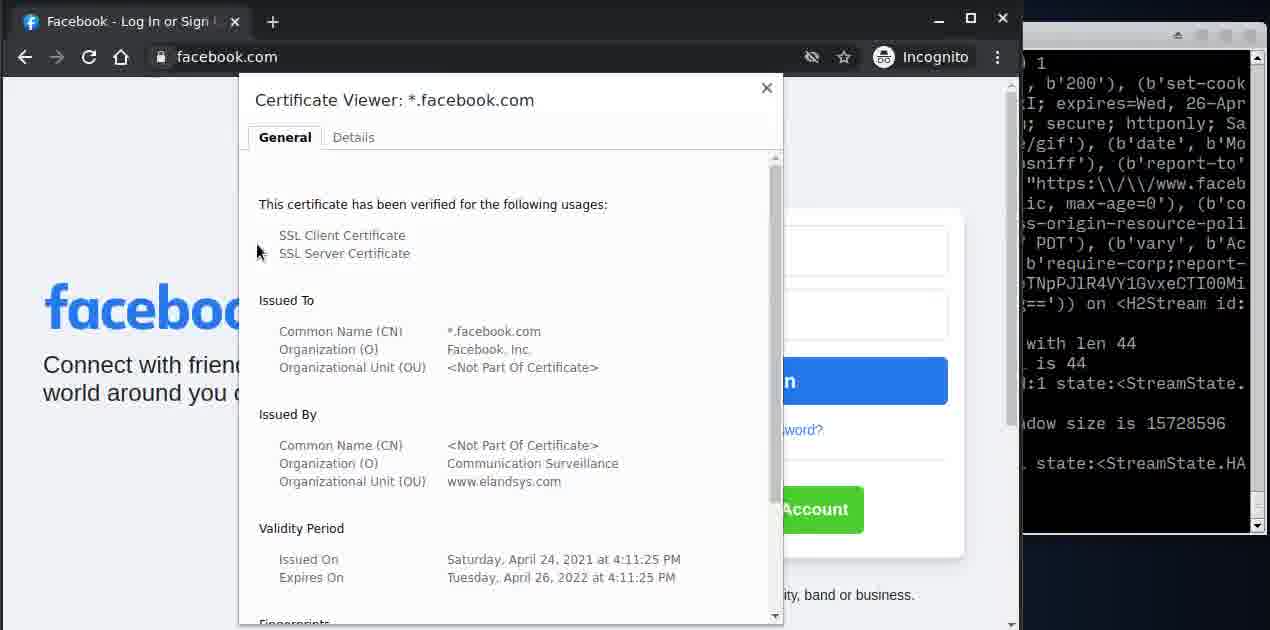

Is the Certificate Authority trusted?

Certificate Authority

Communications Surveillance

Were these web sites protected from communications surveillance?

facebook.com
instagram.com
yahoo.com
www.lexpress.mu
www.google.mu

Decrypting the communication channel

192.0.2.1:48462: GET https://connect.facebook.net/en_US/sdk.js?hash=627fc12fa324537f6f678c4f586b7204&ua=modern_es6 HTTP/2.0
    origin: https://www.instagram.com
    user-agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.114 Safari/537.36
    accept: */*
    sec-fetch-site: cross-site
    sec-fetch-mode: cors
    sec-fetch-dest: script
    referer: https://www.instagram.com/
    accept-encoding: gzip, deflate, br
    accept-language: en-US,en;q=0.9
 << HTTP/2.0 200 OK 64.48k
    access-control-expose-headers: X-FB-Content-MD5
    etag: "e201fe10e07aadcdf46bd119ff7fdc4e"
    timing-allow-origin: *
    x-frame-options: DENY
    content-encoding: gzip
    x-fb-content-md5: 9fa801b03fcc6a9bbee22f20f5930a89
    access-control-allow-origin: *
    cross-origin-resource-policy: cross-origin
    vary: Accept-Encoding
    cross-origin-embedder-policy-report-only: require-corp;report-to="coep_report"
    strict-transport-security: max-age=31536000; preload; includeSubDomains
    content-type: application/x-javascript; charset=utf-8
    x-content-type-options: nosniff
    report-to: {"group":"coep_report","max_age":86400,"endpoints":[{"url":"https:\\/\\/www.facebook.com\\/browser_reporting\\/"}]}
    x-fb-rlafr: 0
    cache-control: public,max-age=31536000,stale-while-revalidate=3600,immutable
    expires: Wed, 27 Apr 2022 10:03:43 GMT
    content-md5: k/tcmZv9MAVppfuj7hjtZg==
    x-fb-debug: Bvc/TzvGX2q7CoAw7cXrrAm8OFDN4PmCFli9EJeZhx0HGHwnxlmGzn6JLbMpLphFwZ1MUSWsFTRP6b/Jx/w6dA==
    priority: u=3,i
    content-length: 66027
    date: Tue, 27 Apr 2021 11:29:23 GMT
    alt-svc: h3-29=":443"; ma=3600,h3-27=":443"; ma=3600

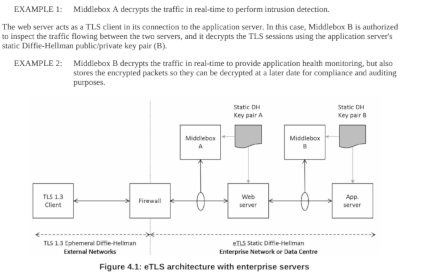

Decrypting (ETSI) eTLS traffic in real-time

Questions?

Decrypting private information

Private information sent to a web site can be decrypted in real-time. The next video shows a user logging into twitter.com. The login information is decrypted and displayed in the terminal window.
